Pedrollo water pumps are trusted worldwide for superior performance, reliability, and energy efficiency.
The Pedrollo brand has been represented in South Africa for over 50 years
Innovative Product Development International CC is one of South Africa's leading pump suppliers.
We offer an extensive Pedrollo pump catalog covering submersible, centrifugal, pressure, and borehole pumps — engineered for residential, agricultural, and industrial applications.
Our technical team has over 50 years of experience in pump system design.
We look forward to helping you.Whether you need a water pump for irrigation, water supply, or pressure boosting, Pedrollo delivers world-class Italian engineering.Type your paragraph here
Browse our full range of Pedrollo pumps we stock in South Africa.
Click on the pump series you are looking for below for detailed technical specifications.
Pedrollo peripheral impeller pumps deliver reliable, high-pressure performance in a compact, energy-efficient package — making them the preferred choice for domestic water supply, pressure boosting, and irrigation applications where consistent head is required at low to moderate flow rates.
A peripheral (regenerative) impeller generates pressure through repeated fluid recirculation along a helical flow path around the impeller's outer channel, rather than a single-pass throw.
This allows peripheral pumps to develop significantly higher heads at low flows than comparably sized shrouded or open centrifugal impellers.
The result is a self-priming-capable pump with a steep H-Q curve, minimal shaft seal wear at low flow, and stable pressure output — without the bulk of a multi-stage centrifugal unit.
For applications demanding high head from small pipework or variable demand points, peripheral impeller technology is the practical, cost-effective solution.
Pedrollo offers a comprehensive selection of peripheral impeller pumps to suit a broad range of pressures, flow requirements, and installation conditions.

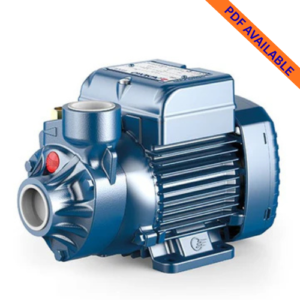

The PK and PKS series are compact single-phase units ideal for household water supply and garden irrigation, with the PKS adding a self-priming advantage.
The PQ series delivers higher capacity outputs for more demanding domestic and light commercial boosting duties.

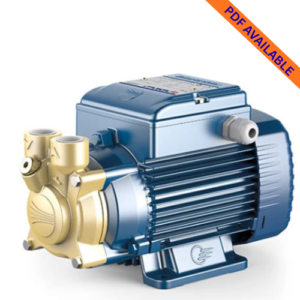

The PV series is a multi-stage peripheral pump suited to elevated head requirements in a slimline form.

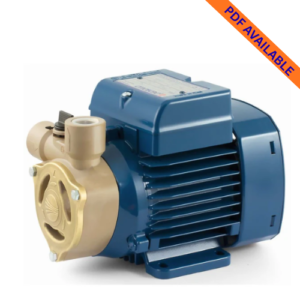

The PQA series incorporates an integrated pressure switch and tank for fully automatic operation.
The CKR series rounds out the range with close-coupled, multi-stage peripheral pump performance designed for Diesel and Pariffin fuel transfer applications.Their specific operating mechanism makes them an excellent solution when the flow of the liquid is irregular or mixed with air.
Pedrollo peripheral impeller pumps are supplied in South Africa by Innovative Product Development International CC (IPDI), a specialist distributor of quality pump and fluid handling solutions since 1986. With dedicated distribution offices in Durban, Johannesburg, and Cape Town, IPDI ensures localised technical support, reliable stock availability, and prompt delivery across the country — giving contractors, engineers, and end users confident access to the full Pedrollo peripheral pump range wherever their project is located.

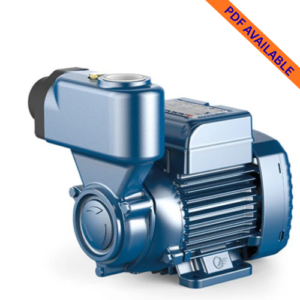

The Pedrollo PKS shares the PK’s compact peripheral impeller design but adds a critical self-priming capability, making it the preferred choice when the pump sits above the water source or in suction-lift conditions.
Ideal for drawing from tanks, cisterns, or shallow wells, the PKS reduces dependence on foot valves in many installations.
Its robust, self-contained priming chamber ensures a reliable self-priming start-up.

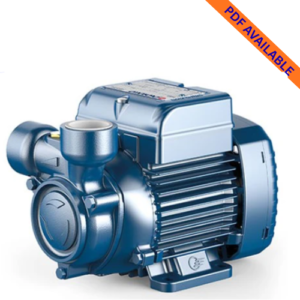

The Pedrollo PQ extends peripheral impeller performance to higher flow rates, addressing the demands of larger domestic properties, light commercial premises, and multi-outlet pressure boosting systems.

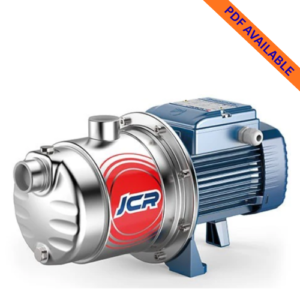

The Pedrollo JCR is a heavy-duty, self-priming centrifugal jet pump built for more demanding suction-lift and abstraction applications, including well points and irrigation from dams and rivers, as well as larger residential or light commercial pressure systems.
The JCR’s stainless steel pump body and robust mechanical seal assembly are rated for continuous-duty operation,
Pedrollo JCR jet pumps are stocked and supported by Innovative Product Development International CC, with distribution from Durban, Johannesburg, and Cape Town. (email pedrollo@pedropumps.com)

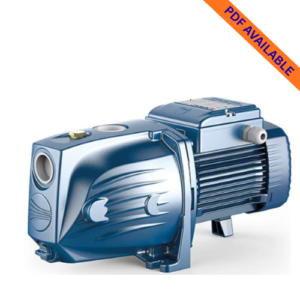

The Pedrollo JSW self-priming pump series is available in 220-volt single-phase and 400-volt three-phase.
Designed for residential water supply, garden irrigation, pressure boosting, and the transfer of clean water from below-ground tanks and shallow open wells.
The integrated venturi creates the vacuum necessary for self-priming, allowing the JSW to draw water from suction lifts of up to 8 meters without requiring a foot valve or manual priming in most installations.
Pedrollo’s threaded-port centrifugal pump range spans three distinct series — the CP, HF, and NGA — each engineered for a specific combination of flow rate, head, application type, and liquid condition.
All three share a cast-iron pump body with ISO 228/1-threaded ports, a stainless-steel motor shaft, and mechanical seal construction, but differ meaningfully in impeller design, port sizing, kW range, and duty profile.
Understanding these differences is essential to correct pump selection.

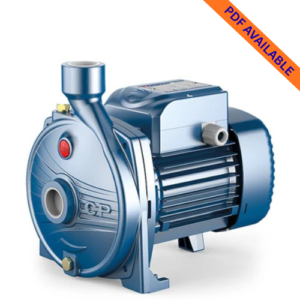

The Pedrollo CP is a single-stage centrifugal pump with a closed stainless steel AISI 304 impeller (brass on select models), designed for the transfer of clean water in domestic, civil, agricultural, and light industrial applications.
Its closed-impeller geometry produces a steep, high-head performance curve that distinguishes it from the HF series — making the CP the correct selection where elevated head is required alongside moderate flow, such as pressure boosting, irrigation distribution, water supply to multi-story buildings, and cooling or air-conditioning circuits.
The CP range spans two sub-groups: the smaller-body CP (0.25–2.2 kW) with 1″ ports on CPm100–CP158 stepping up to 1¼” inlet on CP170–CP200, delivering up to 160 l/min and heads to 56 m.
The larger-body CP (1.1–11 kW) — models CP160 through CP250 — with progressively larger ports and flow capacities up to 900 l/min at heads up to 76 m.
Three-phase motors from 2,2 kW upward operate at 400/690 V. All CP series motors meet IE3 efficiency class (three-phase) and IE2 (single-phase), with class F insulation and inverter compatibility throughout.

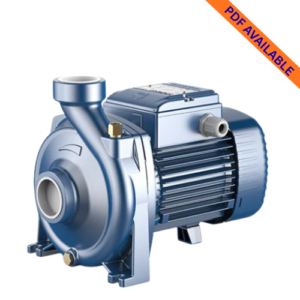

The Pedrollo HF is a high-flow, low-to-medium head centrifugal pump built specifically for applications where large volumes of water must be moved efficiently at moderate pressure.
The HF series excels in flood and spray irrigation, drawing water from tanks, filling large-volume tanker trailers, and circulating industrial cooling water.
Its flat, high-flow curve and large-bore threaded ports make it the natural choice for high-delivery, short-distance pumping duties at economical capital cost.
Port sizing scales with the model: the HF4 (0.75 kW) uses 2½” inlet and outlet ports; HF6 models (1.1–2.2 kW) step up to 3″ ports; and the larger HF8, HF20, and HF30 models use 4″ ports to accommodate flows from 800 l/min up to 2,200 l/min. Impellers are brass across most of the range, with cast iron used on the HF30 for added durability at maximum flow rates.
Single-phase variants (HFm4, HFm6C, HFm6B) cover domestic and light-commercial high-flow duties; three-phase models extend the range to full agricultural and industrial scale.

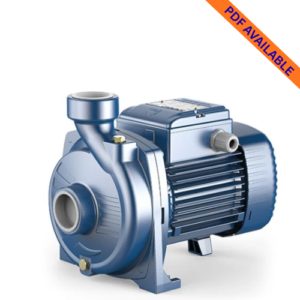

The defining feature of the Pedrollo NGA is its open stainless steel AISI 316 impeller — a fundamentally different hydraulic design from the closed impellers used in both the CP and HF series.
The NGA’s open impeller allows mildly impurity-laden liquids to pass freely through the pump casing, handling suspended solids up to 12 mm in diameter on the NGA1 and NGA2 models, and up to 20 mm on the larger NGA3 model.
This makes the NGA the correct choice for river and channel abstraction, agricultural runoff transfer, dam and reservoir pumping, washdown systems, and any application where the liquid is not entirely clean.
The NGA range spans 0.55 to 2.2 kW across three frame sizes.
NGA1 and NGA2 share a 1½” inlet and outlet port with a maximum working pressure of 6 bar.
NGA3 uses 2″ ports and is rated to 10 bar, accommodating the higher flow and head demands of larger agricultural or light industrial installations.
Only the NGA 1 variant is currently available in single-phase and three-phase from IPDI, with stock and support across Durban, Johannesburg, and Cape Town.
Pedrollo’s multistage and twin-impeller surface-mounted pump range offers three technically distinct product families — the cast-iron 2–4CP, the full stainless-steel 2–5CR, and the larger twin-impeller 2CP — each engineered to address different combinations of head requirements, flow capacity, material specifications, and duty scale.
All three use threaded ISO 228/1 ports, but differ significantly in body material, port sizing, power range, and performance capabilities.
Correct selection depends on matching these parameters to the application.
Please do not hesitate to contact IPDI for help on 0826519841 or email pedrollo@pedropumps.com

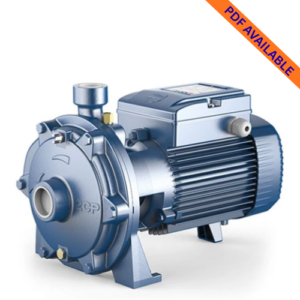

The Pedrollo 2CP is a twin-impeller centrifugal pump with flows up to 450 l/min (27 m³/h), heads up to 112 m, and motor ratings from 1.1 kW up to 7.5 kW.
The 2CP is the appropriate selection for commercial and light industrial pressure boosting, network pressure maintenance, multi-story building water supply, autoclave pressure systems, and firefighting units that require certified high-pressure output.
The 2CP range is organized into three body/port subgroups — the 2CP25, 2CP32, and 2CP40 — which progressively step up in port size and flow capacity.
The 2CP25 uses 1¼” inlet and 1″ outlet ports, covering flows to 160 l/min at heads to 68 m; the 2CP32 steps to 1½” inlet and 1¼” outlet, reaching flows to 250 l/min and heads to 112 m; and the 2CP40 accommodates the highest flow models with 2″ inlet connections.
Impellers are brass across most models (stainless AISI 304 on the 2CP25/130 only).
Maximum working pressure is 10 bar across the 2CP32 and 2CP40 range, and the 2CP is certified for firefighting duty — a specification the CP and CR multistage series do not carry.

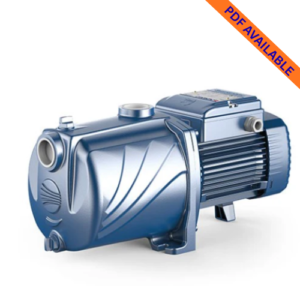

The Pedrollo 2–4CP is a compact horizontal multistage centrifugal pump designed for clean water duties in domestic and light civil applications — including pressure boosting in conjunction with pressure tanks, garden and smallholding irrigation, and household water distribution.
The number prefix indicates the stage count: 2CP, 3CP, and 4CP models run the same flow envelope at progressively higher heads, from 27 m on the 2CP80 to 52 m on the 4CP100, allowing precise selection based on the head requirement of the specific installation.
The pump body is cast iron with an epoxy electro-coating treatment for internal corrosion resistance, with a stainless steel AISI 304 backplate.
Impellers and diffusers are manufactured from Noryl FE1520PW engineering polymer — durable, dimensionally stable, and suited to continuous clean water service.
All models use 1″ BSP threaded inlet and outlet ports, making the 2–4CP directly interchangeable with standard 1″ pipework and compatible with the widest range of pressure vessel and controller accessories.
Single-phase (CPm) and t

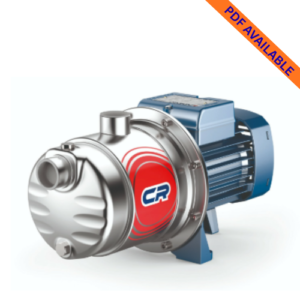

The Pedrollo 2–5CR covers the same flow profile as the 2–4CP — up to 130 l/min — but is constructed throughout in stainless steel AISI 304 for both the pump body and cover, making it the correct specification for potable water systems, food-adjacent applications, coastal or humid installations, and any duty where the cast iron and epoxy-coated body of the CP series would be inadequate.

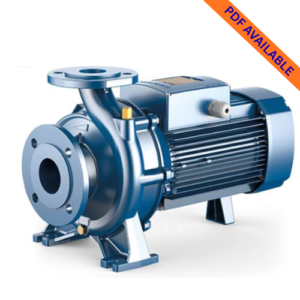

The Pedrollo F series is a range of close-coupled, end-suction centrifugal pumps with flanged connections, engineered and dimensioned to the EN 733 (DIN 24255) international standard.
This standardisation is a defining feature of the range: hydraulic end dimensions are interchangeable with any other EN 733-compliant pump, allowing direct drop-in replacement without pipework modification.

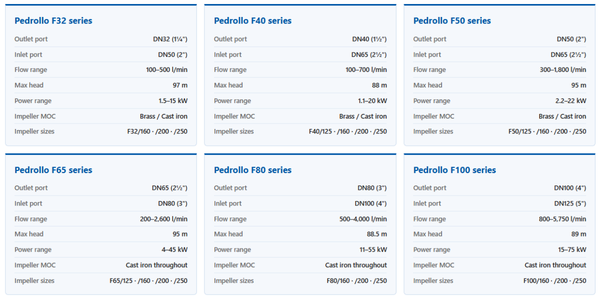

The F series spans six outlet port sizes — F32 through F100 — at motor ratings from 1.5 kW to 75 kW, covering flow rates from 100 l/min to 5,750 l/min and heads up to 98 m.
All models are three-phase (with selected single-phase variants at smaller frame sizes), rated IP55, and equipped with IE3 energy-efficiency motors that are inverter-compatible throughout.
When engineers, contractors, or maintenance buyers search for a “Pedrollo F-series pump” or a “Pedrollo F32”, “F50”, or “F100 pump”, they are typically looking for a drop-in replacement or a new installation requiring a standard, interchangeable flanged end-suction pump.
The EN 733 standard — which superseded DIN 24255 — governs the hydraulic end dimensions, flange face-to-face measurements, and shaft centreline heights of end-suction centrifugal pumps globally.
Every Pedrollo F-series pump is manufactured to these dimensions, meaning that an F50/160 can be removed from its baseplate and replaced with any other EN 733-compliant F50/160-equivalent from any manufacturer, with no pipework changes required.
This interchangeability is the principal reason the F series is specified for industrial plant rooms, commercial building services, municipal water supply, firefighting pump sets, and large-scale irrigation headers where long-term maintainability, parts availability, and supplier independence are engineering priorities.
The F series is supplied in South Africa by Innovative Product Development International CC (IPDI), with distribution, technical support, and spares from offices in Durban, Johannesburg, and Cape Town. Contact IPDI on 083 776 7836 to confirm model availability and current stock before specifying.
Pedrollo’s submersible pump range is one of the most comprehensive in the world, spanning clean-water drainage, dirty-water and sewage pumping, and multistage clean-water supply — all from a single manufacturer with a consistent standard of Italian engineering quality.
The South African selection available through IPDI encompasses eleven distinct series, ranging from the compact domestic TOP to the heavy-duty industrial BC and DC, addressing every submersible pumping requirement, from emergency household drainage to permanent sewage lifting stations.
Each series is engineered for a specific liquid type, solids passage capability, and duty profile — selecting the correct series is as important as selecting the correct model within it.
Flow up to 360 l/min – Head up to 15.5 m – Solids to Ø 10 mm – Drains to 14 mm from floor – Outlet: 1¼”

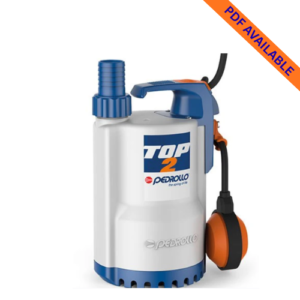

The Pedrollo TOP is a compact single-phase submersible drainage pump designed for clean or clear water without abrasive particles.
Built with a fully cooled motor and double shaft seal, the TOP is the go-to domestic drainage pump for emergency situations — flooded rooms, cellars, garages, and basements — as well as routine duties such as emptying washing machine water, draining sumps, and clearing standing water from outdoor areas.
Available in five power variants (TOP1 through TOP5, 0.25–0.75 kW), the series covers flows from 160 to 360 l/min with heads up to 15.5 m.
All single-phase models include a float switch for fully automatic operation, and the pump drains down to within 14 mm of the floor.
Constructed with a Noryl impeller and a corrosion-resistant motor casing, the TOP is a reliable, low-maintenance first choice for any clean-water drainage situation.
Flow up to 180 l/min – Head up to 7 m – Solids to Ø 25 – mm – Outlet: 1¼”

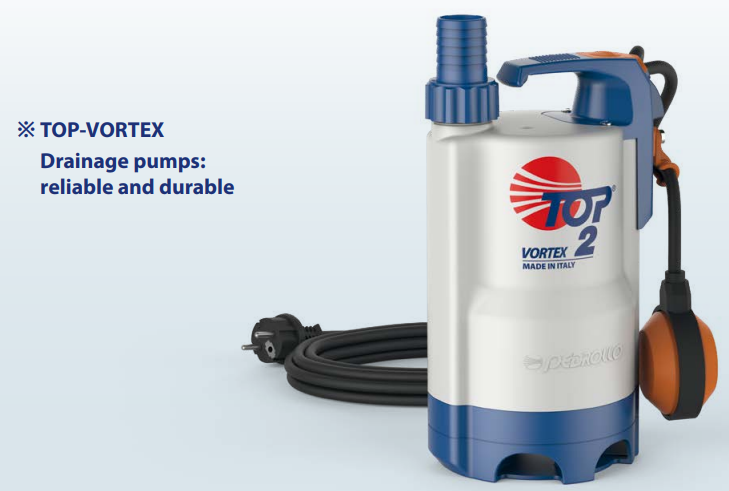

The Pedrollo TOP Vortex shares the compact, lightweight form factor of the standard TOP but replaces the clean-water impeller with a vortex design that allows it to handle dirty water, suspended solids, and light sewage without clogging — passing particles up to 25 mm in diameter.
This makes it the ideal compact pump for emptying dirty sumps, clearing flooded areas where surface runoff contains debris, discharging domestic waste water, and draining collection pits in construction or renovation environments.
It is the smallest pump in the Pedrollo dirty-water submersible range and the most accessible option for domestic dirty-water duties where portability and ease of use are as important as pumping performance.
Flow up to 120 l/min – Head up to 42 m – Pressure-on-demand – Anti-dry-run protection – Outlet: 1¼”

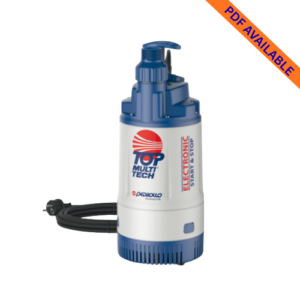

The Pedrollo TOP Multi-Tech — is the fully automatic version of the TOP Multi multistage submersible pump.
It incorporates an integrated electronic controller that provides automatic start on pressure demand and automatic stop when flow ceases, eliminating the need for a separate pressure switch, pressure tank, or external controller in many domestic installations.
The electronic module includes dry-run protection that cuts the pump if the water source runs dry, and an anti-seizure cycle that runs the pump briefly every 48 hours after extended periods of inactivity to prevent impeller jamming.
This makes the TOP Multi Pro a true plug-in water supply solution for JoJo tanks, rainwater harvesting systems, and shallow well supply — particularly in off-grid or semi-automated installations.
Flow up to 120 l/min – Head up –
to 42 m – Immersion to 10 m – Outlet: 1¼”

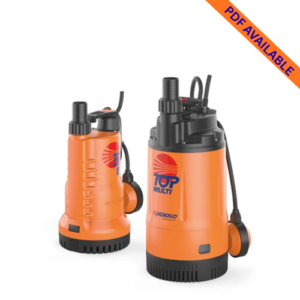

The Pedrollo TOP Multi is a multistage submersible centrifugal pump designed not for drainage but for clean water supply — drawing water from tanks, underground reservoirs, shallow wells, and rainwater cisterns to feed household pressure systems, irrigation systems, and garden watering.
Unlike the drainage-focused TOP series, the TOP Multi pumps upward against a head: available in 1 through 5 stage configurations at 0.37–0.75 kW.
It develops heads up to 42 m at flows to 120 l/min.
Submersible to 10 m (3 m for the TOP Multi 1), making it suitable for submerged installation in a JoJo tank, a brick sump, or an open well.
The standard TOP Multi operates manually or via a separate controller.
Flow up to 380 l/min – Head up to 9.5 m – Solids to Ø 40 mm – Liquid temp to +50°C – Outlet: 1¼

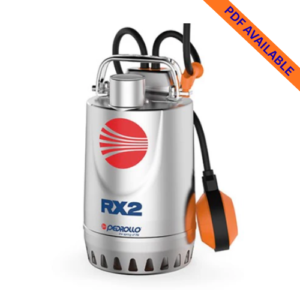

“The Pedrollo RX is a compact stainless steel submersible vortex pump for dirty water containing suspended solids up to 40 mm in diameter.
Its all-stainless construction — pump body, motor casing, and AISI 304 vortex impeller — makes it more corrosion-resistant than cast iron alternatives, and its higher liquid temperature tolerance of up to +50°C extends its suitability beyond standard drainage duties to warm grey-water applications.
The RX is the right choice for domestic and civil drainage of water containing light solids, fibrous material, or sediment: construction site sumps, grey-water pits, yard drainage, and outdoor collection traps.
Available in four models (RX2/20 through RX5/40) covering 0.55–1.1 kW.

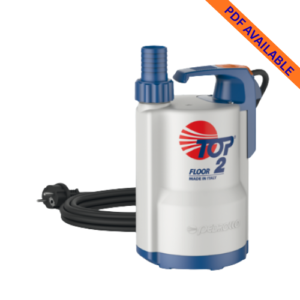

The Pedrollo TOP Floor is a specialist variant of the TOP series, engineered specifically to drain water down to just 2 mm from the floor surface — a capability which most submersible pumps cannot match.
This makes the TOP Floor the correct specification for applications where maximum water removal is critical: lift shafts, underground plant rooms, swimming pool surrounds, water feature reservoirs, and any space where even a shallow residual layer of water is unacceptable.
The flat-bottomed inlet design and closely positioned float switch allow it to operate at water levels that would strand a standard drainage pump.
Clear water only; not suitable for solids or sewage.
