Pedrollo TOP 1

Description

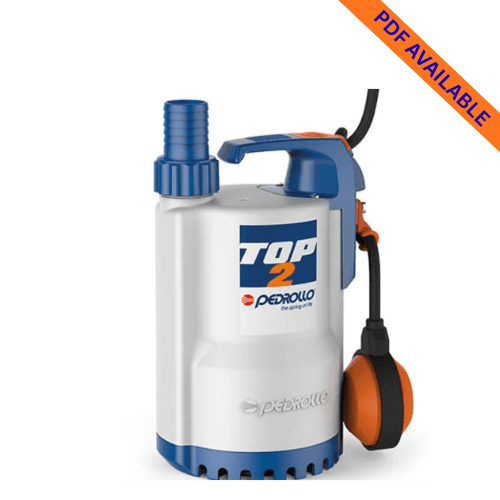

The Pedrollo TOP series is a range of compact submersible drainage pumps built from technopolymer — a robust engineering plastic that is lightweight, corrosion-resistant, and suitable for both indoor and outdoor submersible use. TOP series pumps are the standard domestic and civil specification for emergency drainage of flooded rooms, basements, and garages; emptying sumps; disposing of appliance wastewater; and general clear water drainage duties. Every TOP pump is supplied complete with a 5-metre power cable and float switch.

The TOP 1 at 0.25kW delivers maximum flow of 360 l/min and maximum head of 6.5m. It is designed to drain clear water without abrasive particles containing suspended solids up to 10mm in diameter. The pump can drain liquid down to 14mm from the floor and can operate submerged to 3m depth.

Technopolymer pump body and components provide excellent corrosion resistance and light weight. Stainless steel AISI 304 motor sleeve and cover, AISI 431 motor shaft. Double shaft seal with interposed oil chamber provides reliable sealing in submersible operation. Single-phase 230V motor with integrated thermal protection and IP X8 waterproof rating. Supplied with 5m cable and float switch.

Temperature limit: +40°C continuous, +90°C for short bursts up to 3 minutes.

• Power: 0.25 kW | Voltage: 230V Single Phase | Max Flow: 360 l/min | Max Head: 6.5m | Solids: up to 10mm | Drain depth: 14mm from floor | Max submersion: 3m | Supply: 5m cable + float switch | Protection: IP X8

DISPATCH & PRICING NOTICE: The price shown (R3,697.85 incl VAT) applies to orders dispatched on Tuesdays or Thursdays. Orders dispatched on Mondays, Wednesdays or Fridays are subject to a 5% surcharge — total price R3,882.74 incl VAT. Please confirm your preferred dispatch day when placing your order.
