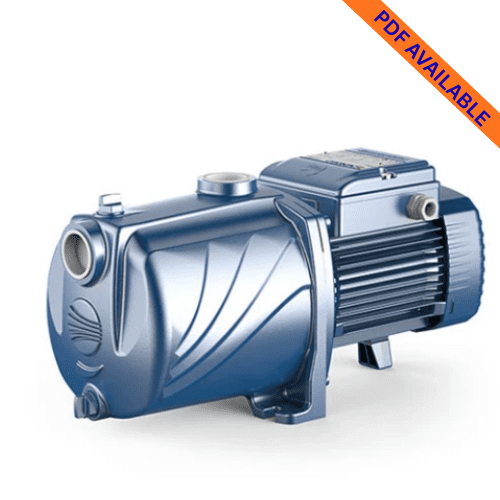

Pedrollo 2CPM 25/16B

Description

The Pedrollo multistage CP range uses multiple impellers arranged in series within a single pump housing — each impeller adds pressure to the flow from the previous stage. The result is significantly higher head pressure than a single-stage centrifugal pump of the same motor rating, making multistage pumps the correct specification wherever high pressure is required at meaningful flow rates.

The 2CP 25 series uses two impellers in series within the 25-body housing, delivering head pressures up to 68m — significantly more than single-stage CP pumps of equivalent power. The ’25’ designation refers to the pump body size, which accommodates flows up to 160 l/min (9.6 m³/h). Maximum working pressure 6 bar. Connections: 1¼” inlet / 1″ outlet.

The 2CPM 25/16B occupies the critical middle ground in the single-phase 2CP 25/16 range — more flow than the 14-body models (up to 160 l/min vs 100 l/min) and more head than a single-stage pump. At 1.5kW with a maximum head of 58m and maximum flow of 160 l/min (9.6 m³/h), it is the most versatile single-phase 2CP specification.

The 2CPM 25/16B is specified for large domestic and commercial pressure boosting serving multiple simultaneous outlets at height, fire-fighting unit supply requiring both pressure and flow, large autoclave systems, agricultural irrigation where both head and volume are critical, and civil water distribution with elevation requirements.

Cast iron body with cataphoresis treatment, AISI 304 stainless steel impellers (ten-year guarantee). IE2 single-phase motor with class F insulation, IPX4 protection, integrated thermal cutout. At 1.5kW confirm your single-phase circuit is correctly rated.

• Power: 1.5 kW | Voltage: 230V Single Phase | Stages: 2 | Max Flow: 160 l/min (9.6 m³/h) | Max Head: 58m | Max Pressure: 6 bar | Connections: 1¼” / 1″ | Impeller: AISI 304 SS (10yr guarantee) | Motor: IE2, IPX4

DISPATCH & PRICING NOTICE: The price shown (R11,094.37 incl VAT) applies to orders dispatched on Tuesdays or Thursdays. Orders dispatched on Mondays, Wednesdays or Fridays are subject to a 5% surcharge — total price R11,649.09 incl VAT. Please confirm your preferred dispatch day when placing your order.
