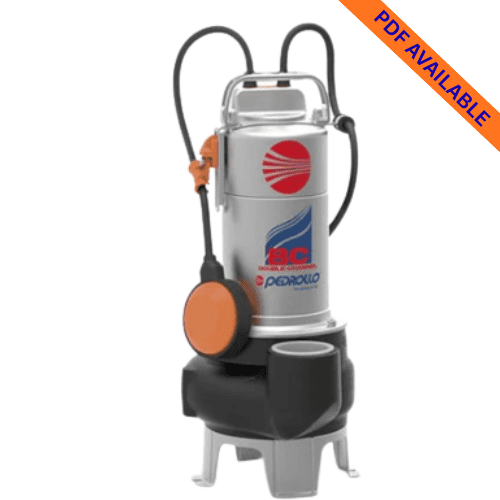

Pedrollo BC 10/50 ST

Description

The Pedrollo BC and MC series are heavy-duty submersible sewage pumps featuring a TWO-CHANNEL impeller in micro-cast AISI 304 stainless steel. The two-channel impeller design provides two large unobstructed flow passages through the impeller, allowing solids up to 50mm in diameter, short fibres, and sewage to pass freely without clogging. Cast iron body with cataphoresis treatment provides exceptional robustness and corrosion resistance for demanding permanent installation in sewage and drainage applications.

The BC 10/50 ST is the three-phase commercial installation version of the BCM 10/50 ST, supplied with a separate float switch and junction box for automatic level-controlled operation in commercial sewage lifting stations.

This is the correct supply format for commercial and light industrial sewage lifting station installations on three-phase power: commercial building basement sewage systems, apartment block sewage lifting, commercial hospitality and catering wastewater, and any permanent three-phase sewage pump installation requiring automatic level control.

0.75kW IE3 three-phase motor, 850 l/min maximum flow, 12m maximum head, two-channel AISI 304 impeller, solids up to 50mm, cast iron body, IP X8. 10m cable. Requires motor protection switchboard (available on request).

• Power: 0.75 kW | Voltage: 400V Three Phase | Max Flow: 850 l/min (51 m³/h) | Max Head: 12m | Solids: up to 50mm | Includes: Float switch + junction box | Motor: IE3 | Max submersion: 5m | Protection: IP X8

DISPATCH & PRICING NOTICE: The price shown (R7,780.72 incl VAT) applies to orders dispatched on Tuesdays or Thursdays. Orders dispatched on Mondays, Wednesdays or Fridays are subject to a 5% surcharge — total price R8,169.76 incl VAT. Please confirm your preferred dispatch day when placing your order.
